Product Overview

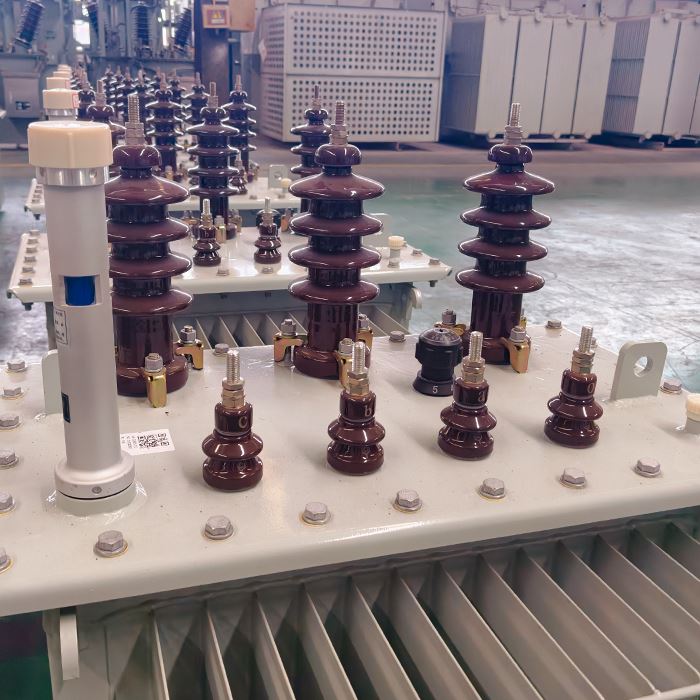

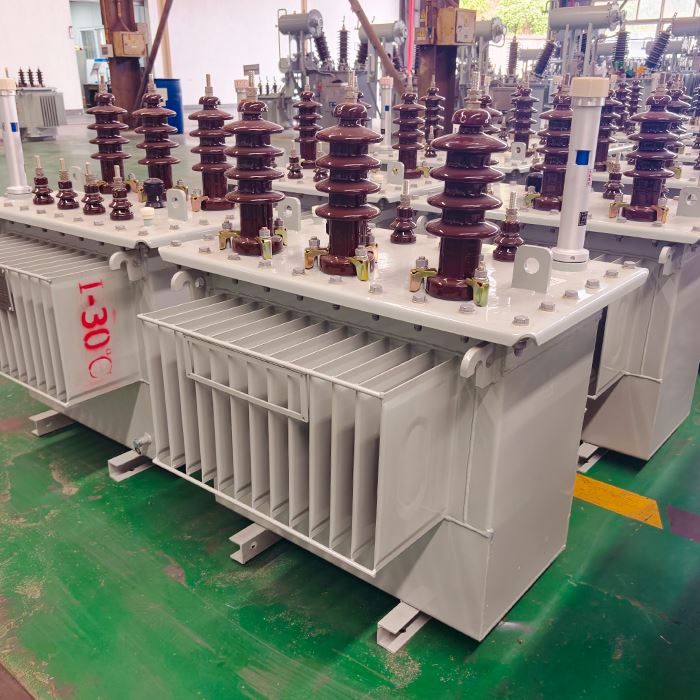

80kVA roj immersed tis transformer yog peb theem roj immersed tis transformer. Nws lub cev siv cov txheej txheem rwb thaiv tsev tshiab, txhim kho luv luv tiv thaiv kev muaj peev xwm. Cov tub ntxhais yog ua los ntawm cov khoom zoo txias txias silicon steel los xij. Lub high voltage windings yog tag nrho cov ua los ntawm high quality oxygen dawb tooj liab hlau thiab feature ib tug ntau txheej cylindrical qauv. Tag nrho cov fasteners tau txais kev kho tshwj xeeb los tiv thaiv loosening. Lub tshuab hluav taws xob me me yog tus cwj pwm los ntawm kev ua haujlwm siab thiab kev poob qis, txuag cov nqi hluav taws xob thiab cov nqi khiav lag luam, ua rau muaj txiaj ntsig zoo hauv zej zog. Nws yog cov khoom siv high-tech txhawb los ntawm lub xeev.
Lub 80kVA roj immersed tis transformer yog tag nrho kaw transformer. Piv rau cov roj zoo tib yam immersed transformers, nws tshem tawm cov roj conservator. Cov kev hloov pauv ntawm cov roj ntim tau raug hloov kho thiab them nyiaj los ntawm elasticity ntawm cov nplooj ntawv corrugated hauv lub tank corrugated. Lub transformer yog cais tawm ntawm huab cua, tiv thaiv thiab ua kom cov roj deterioration thiab rwb thaiv tsev laus.
Technical Specifications
|
Tsis muaj |
Technical Specifications |
|
Qauv |
Fais fab Transformer |
|
Rated peev |
80kVA (customizable raws li kev thov) |
|
Input voltage (siab voltage) |
6.6kV, 10kV, 11kV, 20kV, 35kV (Customization muaj raws li qhov kev thov) |
|
Output voltage (tsawg voltage) |
0.38kV, 0.4kV (Customization muaj raws li qhov kev thov) |
|
Voltage tswj ntau yam |
± 5%, ± 2 × 2.5% (Customization muaj raws li qhov kev thov) |
|
Tus naj npawb ntawm cov theem |
Peb theem (ib theem kuj tau teev tseg) |
|
Ntau zaus |
50Hz / 60Hz |
|
Txuas Group |
Dyn11,Yyn0,Yd11,Dyn5(Customization muaj raws li qhov kev thov) |
|
Cov khoom siv winding |
Tooj / Aluminium |
|
Tsis load poob |
Ua tau raws li lub teb chaws tus qauv / IEC Qib 1 / Qib 2 kev siv hluav taws xob |
|
Load poob |
Ua tau raws li lub teb chaws tus qauv / IEC Qib 1 / Qib 2 kev siv hluav taws xob |
|
Tsis muaj load tam sim no |
Tus qauv tsim qhov tseem ceeb, tsis tshua muaj kev ua kom zoo |
|
Kub nce txwv |
Tsawg dua lossis sib npaug li 60K (roj txheej txheej) |
|
luv Circuit Court impedance |
Customization muaj raws li qhov kev thov |
|
Txoj kev txias |
ONAN (Oil immersion thiab nws tus kheej txias) |
|
Rwb thaiv tsev chav kawm |
Qib A |
|
Kev tso tawm ib nrab |
Tsawg dua los yog sib npaug rau 20pC (tus qauv yuav tsum tau ua) |
|
Cov qauv kev coj ua |
IEC, GB, JIS, ANSI, IEEE, UL |
Roj Immersed Transformer FAQ
1. Lub peev xwm thiab qhov hluav taws xob muaj dab tsi?
Muaj peev xwm ntawm 50 kVA mus txog 200,000 kVA (200 MVA). Thawj qhov hluav taws xob mus txog 220 kV, theem nrab voltage ntawm 0.4 kV txog 35 kV. Kev cai tsim muaj.
2. Kuv puas tuaj yeem nruab ib lub roj immersed transformer ntawm qhov siab siab (siab tshaj 1000m)?
Yog, tab sis derating yuav tsum tau. Kev ua kom txias txias poob ntawm qhov siab siab. Nco ntsoov qhia qhov siab thaum xaj kom peb tuaj yeem kho tus qauv tsim.
3. Puas yog cov roj immersed transformers ua tau raws li cov qauv kev siv hluav taws xob?
Yog lawm. Peb cov chav ua raws li Tier 1 / Tier 2 (Tuam Tshoj), DOE (USA), thiab EU Ecodesign cov cai. Tsawg tsis muaj load thiab load poob txo cov nqi khiav lag luam.
● Ntiaj teb no export txij thaum 2011- Peb cov khoom tau mus txog ntau lub tebchaws thiab cheeb tsam.
● Koj tus khub uas ntseeg siab- Peb muab kev hloov pauv hloov pauv, OEM tej yaam num, thiab ib-nres fais fab kev daws teeb meem.
● Cov khoom siv dav- Cov kauj ruam-down, peb-theem, thiab cov me me transformers kom tau raws li qhov xav tau ntawm ntau qhov project.
Kev siv scenario
● Sab nraum zoov substations, fais fab kis tau tus mob & tis network
● Heavy industrial nroj tsuag, mining, cement, steel
● Hnub ci ua liaj ua teb, cua fais fab nce qib chaw nres tsheb
● Kev siv hluav taws xob nyob deb nroog, ncej-mounted faib
