Product Overview

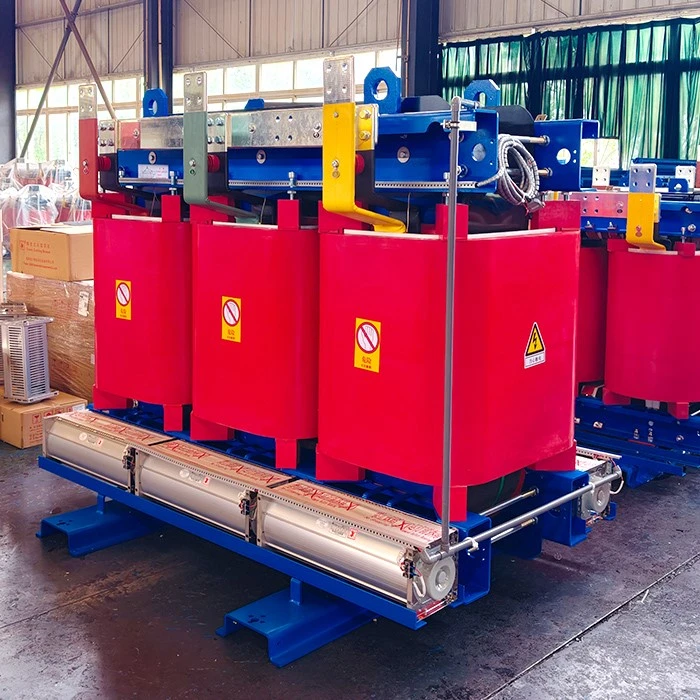

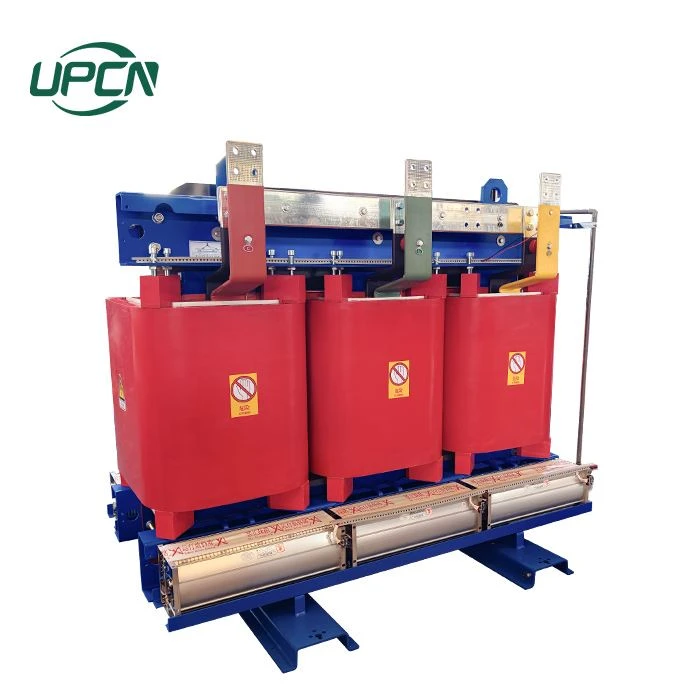

1000kVA qhuav hom transformer nta epoxy resin cam khwb cia rwb thaiv tsev thiab boasts ob peb yam tseem ceeb: poob (tsis muaj load poob los ntawm ntau tshaj 20%, zoo heev zog efficiency, economical lag luam, thiab txij nkawm dawb); tsawg ib feem tawm (cov resin sib tov siv cov kev sib txawv txawv teb chaws thiab lub tshuab nqus tsev degassing los xyuas kom meej qhov sib xyaw ua ke thiab ua tiav tshem tawm cov npuas npuas, ua rau tsis tshua muaj qhov paug tawm, tswj tau qis dua 5pc); thiab ob qho tib si siab thiab qis voltage coils raug cam khwb cia nyob rau hauv lub tshuab nqus tsev thiab siab, muab tag nrho encapsulation thiab inter tig impregnation ntawm cov resin rwb thaiv tsev.
1000kVA qhuav hom transformer casting muaj qhov ntom ntom, kho cov qauv uas yog nplaim hluav taws, tawg pov thawj, thiab ib puag ncig zoo. Cov ntaub ntawv insulating, xws li fiberglass, siv nyob rau hauv winding coils yog nws tus kheej extinguishing, tiv thaiv arcing thaum lub sij hawm luv luv circuits, thiab cov resin tsis tsim muaj kuab lom los yog teeb meem gases nyob rau hauv high kub. Lub zog txhua yam muaj zog: Cov muab tub lim puv ua rau muaj qhov sib txawv me me ntawm cov coefficient ntawm kev nthuav dav hauv qhov casting, qis curing shrinkage, tsis tshua muaj kev ntxhov siab, thiab siab hardness ntawm cov khoom kho. Ua ntej tsim cov khoom siv ntxiv yog muab tso rau hauv cov txheej txheem epoxy resin encapsulation rau sab hauv thiab sab nrauv ntawm lub siab thiab qis hluav taws xob coils, tsim kom muaj cov qauv ntom ntom zoo ib yam li cov pob zeb muaj zog. Yog li ntawd, nws lub zog txhua yam yog ntau dua li cov ntshiab epoxy resin, ua rau nws tuaj yeem tiv taus luv luv Circuit Court electrodynamic tsis muaj kev puas tsuaj.
Technical Specifications
|
Tus lej |
qib technical |
|
Qauv nab npawb |
Qhuav hom converter rau ziab roj |
|
Muaj peev xwm tas li |
1000kVA (Adjustable thov system) |
|
Imported hluav taws xob (Gaogu) |
6.6kV, 10kV, 11kV, 20kV, 22kV, 22.9kV, 35kV (Adjustable thov system) |
|
Export hluav taws xob (tsis tshua muaj siab) |
0.38kV, 0.4kV, (Adjustable thov system) |
|
Voltage tswj ntau yam |
± 5%, ± 2 × 2.5%, (Adjustable thov system) |
|
Tus naj npawb ntawm cov theem |
Peb theem (Adjustable demand system) |
|
Ntau zaus |
50Hz / 60Hz |
|
Txuas Group |
Dyn11,Yyn0,Yd11,Dyn5,YNd11(Adjustable demand system) |
|
Cov khoom siv winding |
Aluminium / tooj liab |
|
Tsis load poob |
(Adjustable thov system) |
|
Load poob |
(Adjustable thov system) |
|
Tsis muaj load tam sim no |
(Adjustable thov system) |
|
Kub nce txwv |
100K, 125K (Raws li F / H chav kawm rwb thaiv tsev) (Adjustable demand system) |
|
luv Circuit Court impedance |
(Adjustable thov system) |
|
Txoj kev txias |
AN (natural cooling) los yog AF (tsim cua txias) |
|
Rwb thaiv tsev chav kawm |
Chav Kawm F (Class H xaiv tau) |
|
Kev tso tawm ib nrab |
Tsawg dua lossis sib npaug li 5pC |
|
Cov qauv kev coj ua |
IEC, GB, JIS, ANSI, IEEE, UL |
Kev siv scenario
Qhuav Hom Transformer FAQ
1. Dab tsi yog qhov txawv ntawm hom qhuav thiab roj immersed transformers? Kuv yuav tsum xaiv qhov twg?
Hom qhuav yog hluav taws kub zoo, tsis muaj kev saib xyuas, thiab zoo tagnrho rau siv sab hauv tsev. Roj immersed nqi tsawg dua thiab haum rau kev siv sab nraum zoov. Xaiv hom qhuav rau sab hauv tsev, hluav taws kub rhiab qhov chaw.
2. Puas yog lub tshuab hluav taws xob qhuav puas xav tau kev saib xyuas tsis tu ncua? Nws kav ntev npaum li cas?
Yuav luag tsis muaj kev saib xyuas - tsuas yog qee zaus plua plav tu. Lifespan feem ntau yog 25-30 xyoo nyob rau hauv ib txwm ua haujlwm sab hauv.
3. Koj muaj peev xwm, qhov hluav taws xob, thiab kev cai dab tsi?
Muaj peev xwm ntawm 30kVA mus txog 10,000kVA, thawj qhov hluav taws xob mus txog 35kV, theem nrab 0.4kV / 0.69kV. Custom design, enclosure, xim, thiab logo muaj.
Cov ntaub ntawv khoom thiab ntawv pov thawj
Peb muab cov ntaub ntawv ua tiav hauv qab no thiab cov ntaub ntawv zoo:
• Cov Ntaub Ntawv Kev Nyab Xeeb Cov Ntaub Ntawv (MSDS)
• Daim Ntawv Qhia Txog Lub Hoobkas
• Certificate of Conformity
