Product Overview

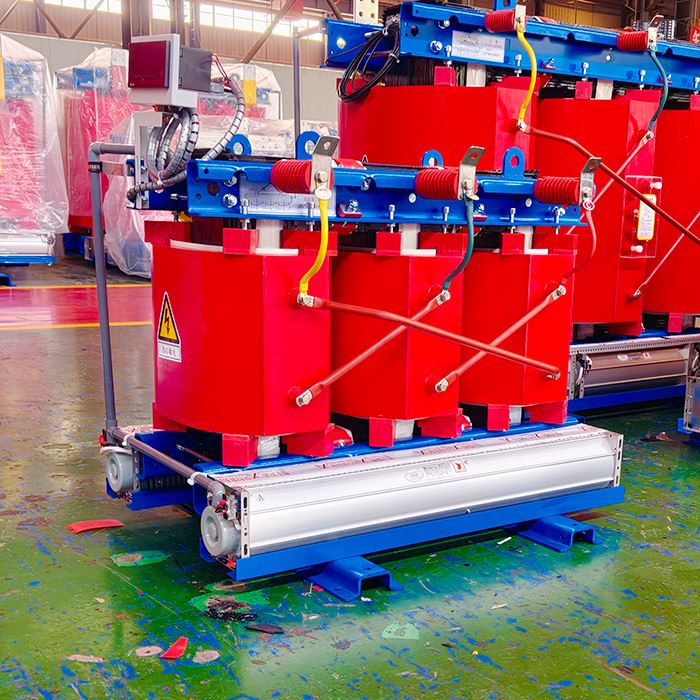

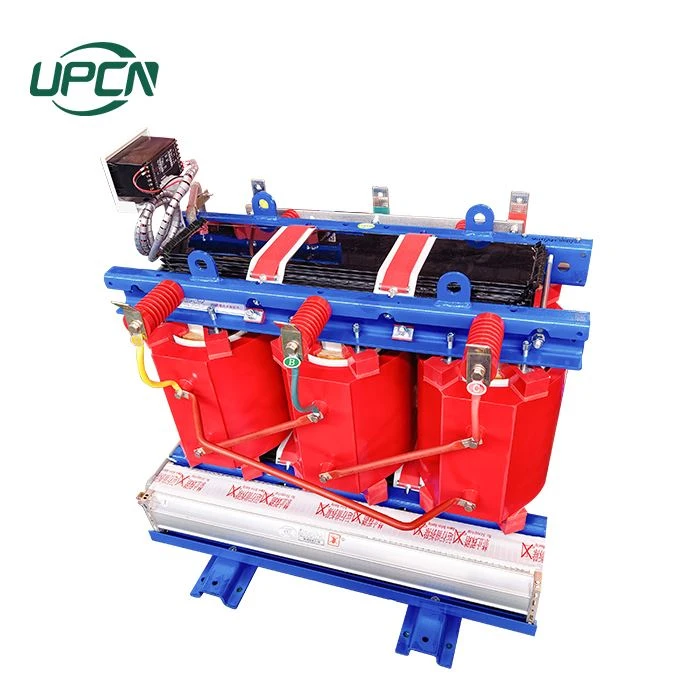

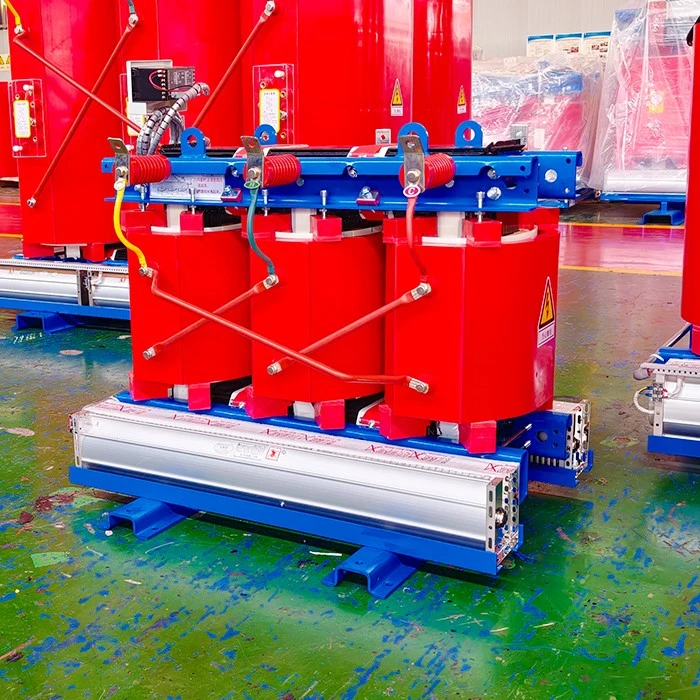

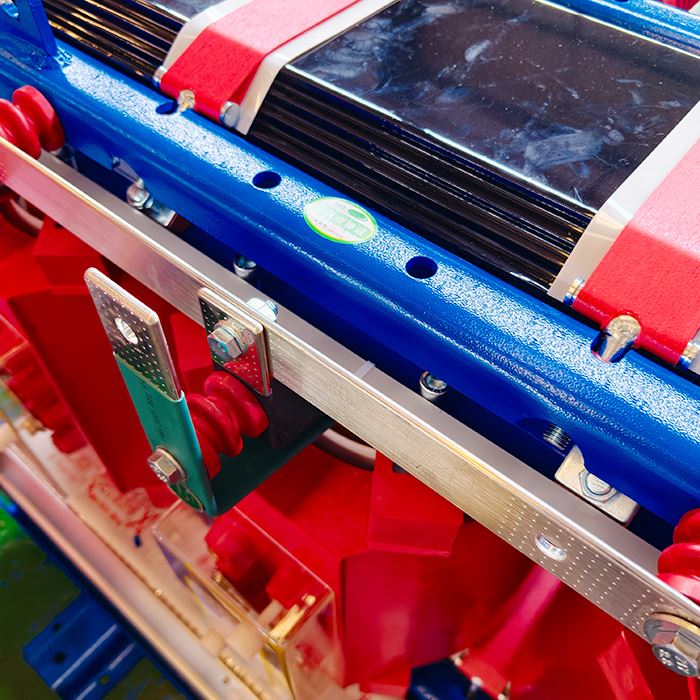

50 kVA qhuav hom transformer yog ib qho me me, peb theem, tsis muaj roj, hluav taws kub resistant, thiab ib puag ncig tus phooj ywg tis transformer nrog epoxy resin casting rwb thaiv tsev. Cov kauj ruam nce qib qis transformer yog tsim rau 6.6kV / 10kV / 0.4kV fais fab faib tshuab, feem ntau yog siv rau kev hloov pauv hluav taws xob, hluav taws xob faib hluav taws xob, thiab lub zog ruaj khov. Cov khoom yog compact, tsis tshua muaj poob, tsis tshua muaj suab nrov, yuav tsum tsis muaj kev tu, thiab muaj zog luv luv Circuit Court muaj peev xwm. Nws tuaj yeem ua haujlwm yam xyuam xim rau lub sijhawm ntev hauv tsev, hauv qab daus, lub Hoobkas me, lub tsev, thiab chav tsev hauv computer, thiab siv dav hauv kev lag luam, kev tsim kho, hauv nroog, thiab daim phiaj hluav taws xob me me.
Peb 50 kVA qhuav hom transformers muaj ntau yam kev siv: lawv tuaj yeem siv los ua cov kauj ruam hauv kev hloov pauv kom tau raws li qhov xav tau ntawm ntau yam kev hloov pauv hloov pauv, hauv cov tshuab hluav taws xob me me rau kev siv hluav taws xob tsawg, lossis ua peb theem faib transformers hauv cov tshuab fais fab. Ua tsaug rau lawv cov kev ua tau zoo thiab cov qauv tsim qauv, thiab ua tsaug rau cov qauv tsim khoom, peb tuav cov khoom tsim nyog rau kev xa khoom sai. Peb tsim nyob rau hauv nruj raws li ntau yam thoob ntiaj teb thiab cov qauv hauv cheeb tsam: IEC, GB, JIS, ANSI, IEEE, thiab UL, thaum ua tau raws li kev ntsuas hluav taws xob (Qib 1 / Qib 2) thiab SCB series yuav tsum. Tag nrho cov khoom tau dhau qhov kev sim nruj thiab ntawv pov thawj raws li cov qauv tsim nyog.
Khoom zoo
|
Yam ntxwv |
Product Technology Excellence |
|
Tsawg zog hauv zos emission |
Siv cov txheej txheem epoxy resin nqus casting, ib feem ntawm qhov paug tawm tsawg dua los yog sib npaug li 5pC, uas yog qis dua tus qauv yuav tsum tau ua thiab txuas ntxiv lub neej rwb thaiv tsev. |
|
Anti luv luv Circuit Court muaj peev xwm zog |

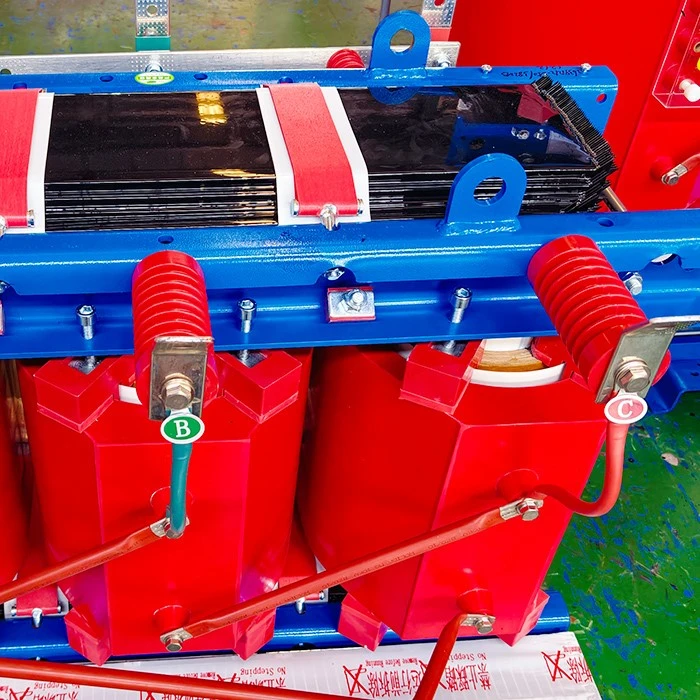

Lub kauj yog cam khwb cia raws li ib tug nruj nreem thaiv, uas muaj peev xwm tiv taus lub zog loj electrodynamic tsim thaum lub sij hawm luv luv Circuit Court, tsis muaj kev pheej hmoo ntawm kev txav los yog tawg. |
|
Tide resistant |
Nws tuaj yeem khaws cia thiab ua haujlwm hauv qhov chaw muaj av noo yam tsis muaj kev ziab ua ntej; thaum siv nrog lub plhaub tiv thaiv, nws tsim nyog rau cov plua plav lossis corrosive ib puag ncig. |
Technical Specifications
|
Tus lej |
Kev kawm qib |
|
Qauv nab npawb |
Qhuav hom converter rau ziab roj |
|
Muaj peev xwm tas li |
50kVA (Adjustable thov system) |
|
Imported hluav taws xob (Gaogu) |
6.6kV, 10kV, 11kV, 20kV, 22kV, 22.9kV, 35kV (Adjustable thov system) |
|
Export hluav taws xob (tsis tshua muaj siab) |
0.38kV, 0.4kV, (Adjustable thov system) |
|
Voltage tswj ntau yam |
± 5%, ± 2 × 2.5%, (Adjustable thov system) |
|
Tus naj npawb ntawm cov theem |
Peb theem (Adjustable demand system) |
|
Ntau zaus |
50Hz / 60Hz |
|
Txuas Group |
Dyn11,Yyn0,Yd11,Dyn5,YNd11(Adjustable demand system) |
|
Cov khoom siv winding |
Aluminium / tooj liab |
|
Tsis load poob |
(Adjustable thov system) |
|
Load poob |
(Adjustable thov system) |
|
Tsis muaj load tam sim no |
(Adjustable thov system) |
|
Kub nce siab txwv |
100K, 125K (Raws li F / H chav kawm rwb thaiv tsev) (Adjustable demand system) |
|
luv Circuit Court impedance |
(Adjustable thov system) |
|
Txoj kev txias |

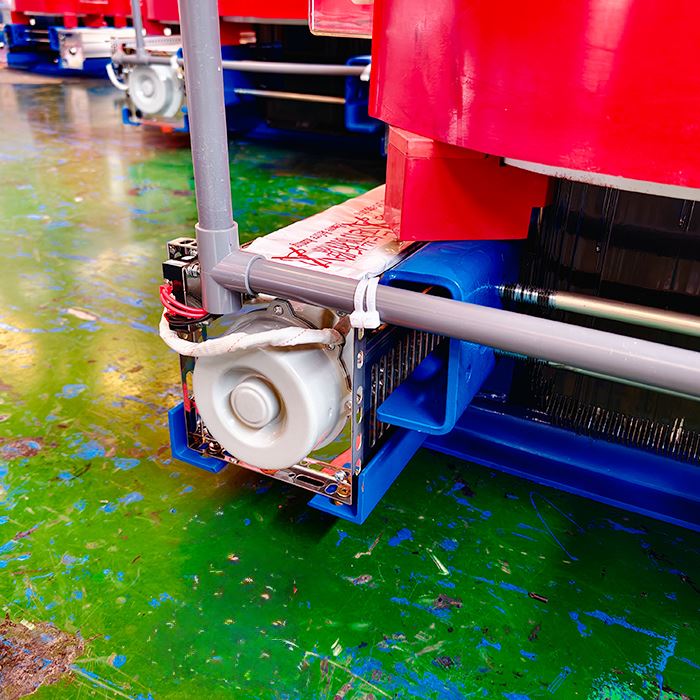

AN (natural cooling) los yog AF (tsim cua txias) |
|
Rwb thaiv tsev chav kawm |
Chav Kawm F (Class H xaiv tau) |
|
Kev tso tawm ib nrab |
Tsawg dua lossis sib npaug li 5pC |
|
Cov qauv kev coj ua |
IEC, GB, JIS, ANSI, IEEE, UL |
Vim li cas thiaj xaiv Union Power

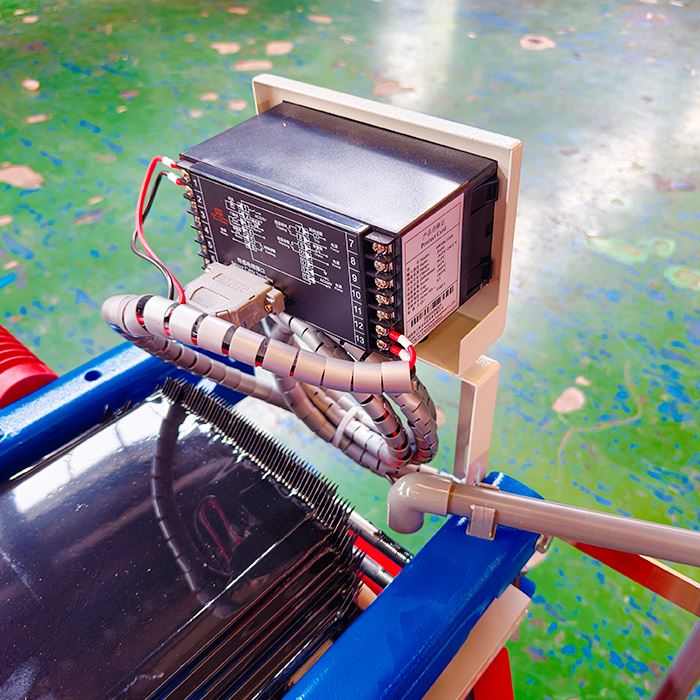

• Ua tiav cov khoom siv ntxiv: suav nrog tag nrho cov khoom siv xws li kev poob siab absorbers, suab nrov txo, thiab cov tswj kub; qhov taw qhia yuam kev, cable terminals, thiab lwm yam khoom siv.
• Kev Txhim Kho Kev Pabcuam: Nruab nrog cov kws tshaj lij hluav taws xob muaj ntawv pov thawj thiab cov kws tshaj lij engineers, txhawb nqa ntawm qhov chaw tshaj lij kev teeb tsa thiab cov kev taw qhia kev teeb tsa hauv online.
• Kev Tso Cai thiab Kev Ntsuas: Muaj cov cuab yeej ntsuas hluav taws xob siab heev thiab ua tiav, ua los ntawm cov neeg ua haujlwm tshaj lij kom ntseeg tau tias muaj kev nyab xeeb ntawm lub zog.
• Kev them nyiaj yug tom qab muag: 24/7 online technical support; ntawm qhov chaw tom qab muag kev pab cuam cog lus tuaj txog ntawm qhov chaw nyob hauv 5 hnub (rau kev hloov cov khoom tshwj xeeb, lub sij hawm tuaj txog ntawm cov khoom yuav yeej).
• Customization Peev Xwm: Muab kev tshaj lij ib qho kev daws teeb meem raws li cov neeg siv khoom xav tau thiab cov xwm txheej thov.
• Kev Xa Khoom: Ntau lub hauv paus tsim khoom thiab kev tswj xyuas nruj kom ua tiav kev xa khoom sai thiab ua tau zoo kom tsis txhob muaj kev cuam tshuam cov khoom lag luam.
Qhuav-Hom Transformer FAQ
1. Puas yog qhuav-hom transformers xav tau kev saib xyuas tsis tu ncua?
Kev saib xyuas tsawg heev - tsuas yog qee zaus cov plua plav tu thiab kev soj ntsuam pom. Tsis muaj kev sim roj, tsis muaj kev hloov lim dej.
2. Lub tshuab ziab khaub ncaws - hom transformer ntev npaum li cas?
Raws li kev ua haujlwm sab hauv tsev, 25-30 xyoo lossis ntau dua.
3. Koj muaj peev xwm thiab voltage dab tsi rau qhuav -hom transformers?
Peev Xwm: 30kVA - 10,000kVA +. Thawj qhov hluav taws xob: mus txog 35kV. Secondary: 0.4kV, 0.69kV, lossis kev cai.
Cov ntaub ntawv khoom thiab Daim Ntawv Pov Thawj
Peb muab cov ntaub ntawv ua tiav hauv qab no thiab cov ntaub ntawv zoo:
• Cov Ntaub Ntawv Kev Nyab Xeeb Cov Ntaub Ntawv (MSDS)
• Daim Ntawv Qhia Txog Lub Hoobkas
• Certificate of Conformity
