Product Overview

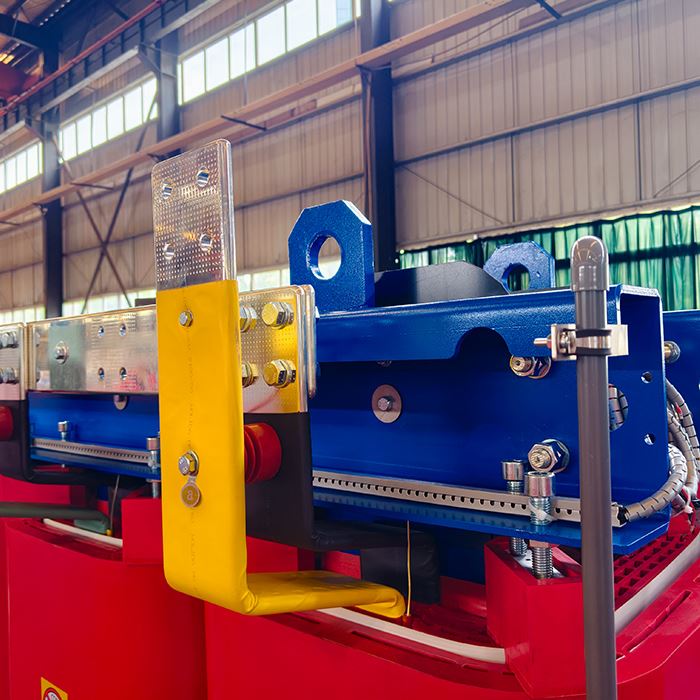

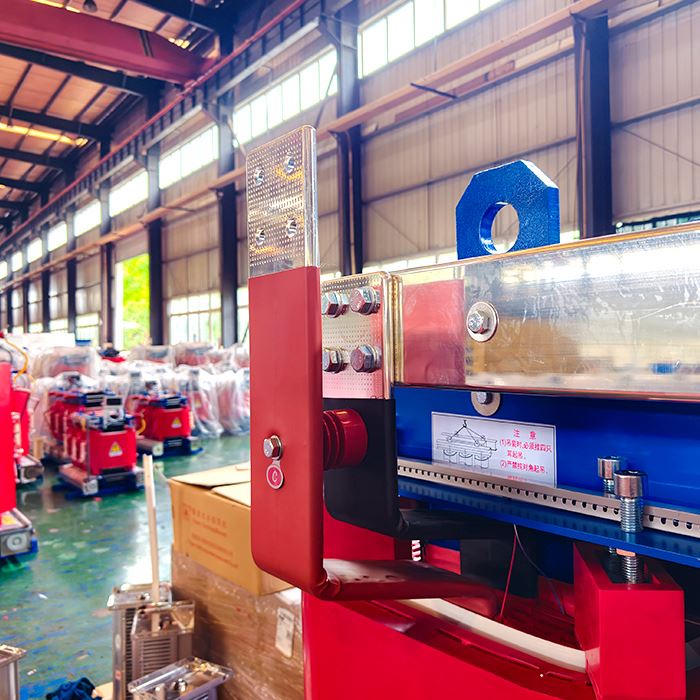

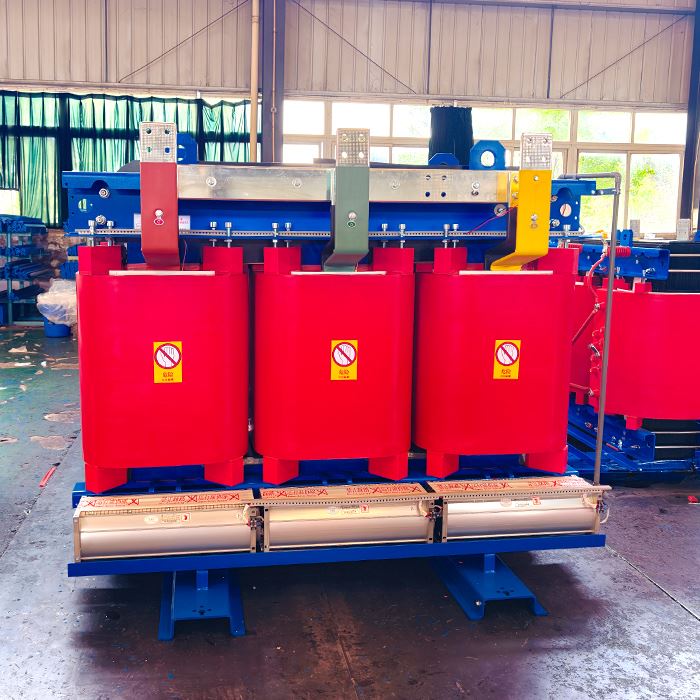

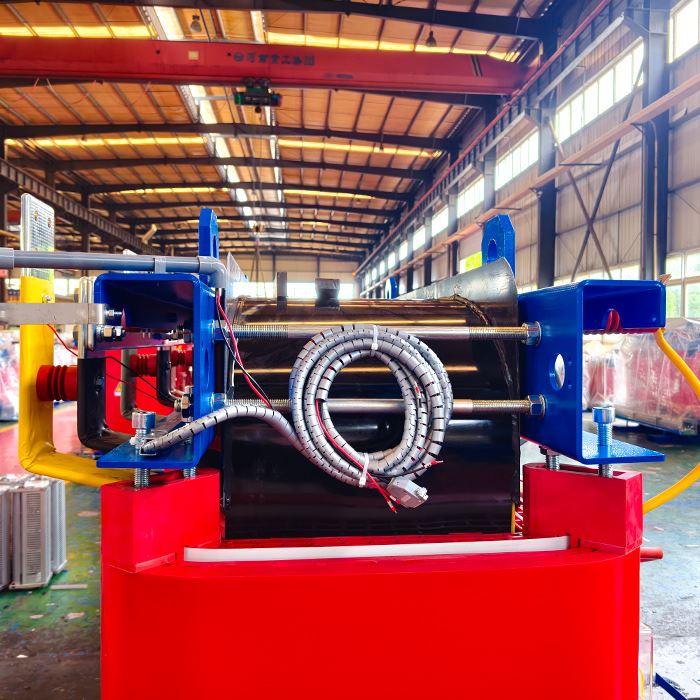

Lub 1250kVA qhuav fais fab transformer yog cov khoom siv hluav taws xob zoo thiab txhim khu kev qha tsim los muab lub zog ruaj khov. Nrog lub peev xwm ntsuas ntawm 1250kVA, qhov kev faib hluav taws xob no yog tsim los ua kom tau raws li qhov xav tau ntawm lub zog ntawm kev lag luam thiab kev lag luam. Siv thev naus laus zis rwb thaiv tsev qhuav, qhov transformer no muaj kev ruaj ntseg thiab ruaj khov. Nws tsis tshua muaj suab nrov ua haujlwm thiab kev tsim tus phooj ywg ib puag ncig zoo txo cov nqi khiav lag luam thiab kev cuam tshuam ib puag ncig.
Lub 1250kVA qhuav fais fab transformer yog nruab nrog lub tshuab cua txias siab heev thiab kev tswj xyuas qhov kub thiab txias kom ua haujlwm ruaj khov ntawm lub transformer.
1250kVA qhuav fais fab transformers muaj ntau yam kev siv: lawv tuaj yeem siv los ua cov kauj ruam nce thiab nqis nqis transformers kom tau raws li ntau yam kev hloov pauv hloov hluav taws xob xav tau, thiab raws li peb theem transformers hauv cov tshuab hluav taws xob. Peb tsim peb cov khoom raws li nruj raws li ntau tus qauv thoob ntiaj teb thiab cheeb tsam: IEC, GB, JIS, ANSI, IEEE, thiab UL. Tag nrho cov khoom tau dhau qhov kev sim nruj thiab ntawv pov thawj ntawm lawv cov qauv.
Technical Specifications
|
Tus lej |
qib technical |
|
Qauv nab npawb |
Qhuav hom converter rau ziab roj |
|
Muaj peev xwm tas li |
1250kVA (Adjustable thov system) |
|
Imported hluav taws xob (Gaogu) |
6.6kV, 10kV, 11kV, 20kV, 22kV, 22.9kV, 35kV (Adjustable thov system) |
|
Export hluav taws xob (tsis tshua muaj siab) |
0.38kV, 0.4kV, (Adjustable thov system) |
|
Voltage tswj ntau yam |
± 5%, ± 2 × 2.5%, (Adjustable thov system) |
|
Tus naj npawb ntawm cov theem |
Peb theem (Adjustable demand system) |
|
Ntau zaus |
50Hz / 60Hz |
|
Txuas Group |
Dyn11,Yyn0,Yd11,Dyn5,YNd11(Adjustable demand system) |
|
Cov khoom siv winding |
Aluminium / tooj liab |
|
Tsis load poob |
(Adjustable thov system) |
|
Load poob |
(Adjustable thov system) |
|
Tsis muaj load tam sim no |
(Adjustable thov system) |
|
Kub nce txwv |
100K, 125K (Raws li F / H chav kawm rwb thaiv tsev) (Adjustable demand system) |
|
luv Circuit Court impedance |
(Adjustable thov system) |
|
Txoj kev txias |
AN (natural cooling) los yog AF (tsim cua txias) |
|
Rwb thaiv tsev chav kawm |
Chav Kawm F (Class H xaiv tau) |
|
Kev tso tawm ib nrab |
Tsawg dua lossis sib npaug li 5pC |
|
Cov qauv kev coj ua |
IEC, GB, JIS, ANSI, IEEE, UL |
Khoom zoo
● Ua kom tawv- Integrated resin casting muab rau koj zoo tshaj rwb thaiv tsev, lub zog, thiab luv-circuit tiv thaiv.
● Kev nyab xeeb los ntawm kev tsim- nplaim retardant, self-extinguishing - tsis muaj hluav taws kub.
● Npaj rau qhov kawg- Kev ua tau zoo ib puag ncig, txawm tias nyob hauv qhov chaw hnyav.
● Tus nqi qis ntawm kev ua tswv cuab- Kev saib xyuas tsawg, kev siv nyiaj tsawg.
● Ntsuab & muaj txiaj ntsig- Kev poob qis, kev ua haujlwm siab, kev txuag hluav taws xob tiag.
Hais txog Union Power
Txij li xyoo 2011, peb tau xa cov transformers mus rau ntau lub teb chaws thiab cheeb tsam thoob ntiaj teb. Raws li tus neeg koom tes txhim khu kev qha, peb muab cov kev cai transformer tsim, kev pab OEM, thiab ib qho kev daws teeb meem. Peb qhov ntau yam suav nrog cov kauj ruam-down, peb-theem, thiab cov me me transformers - ua tau raws li ntau hom kev xav tau.
