Product Overview

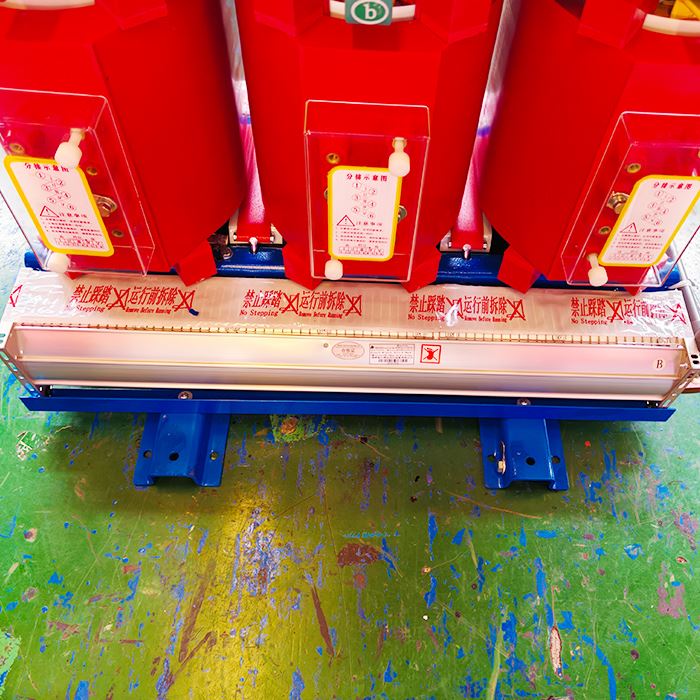

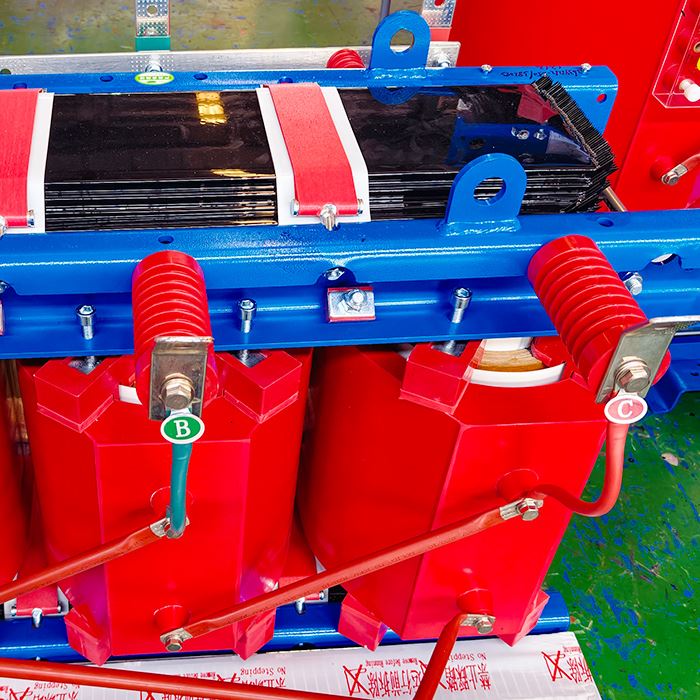

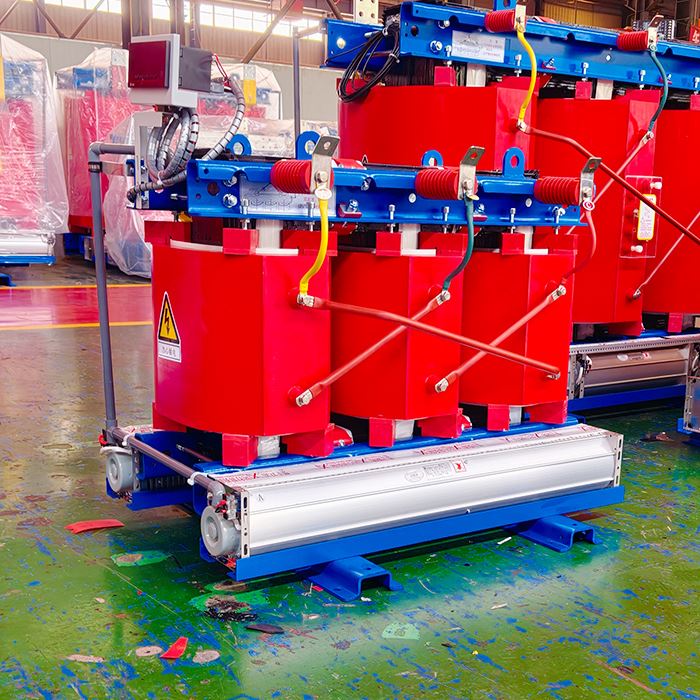

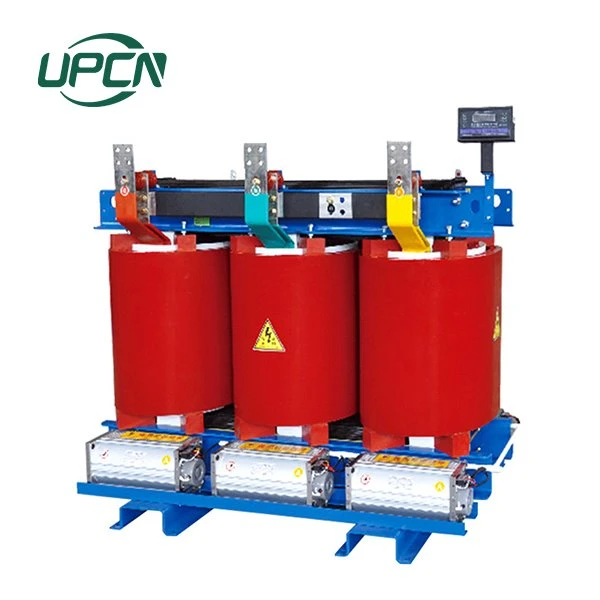

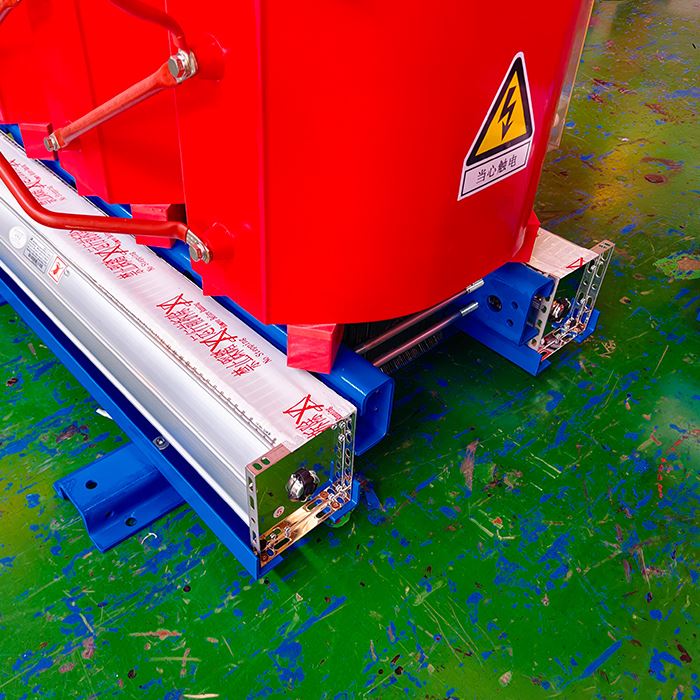

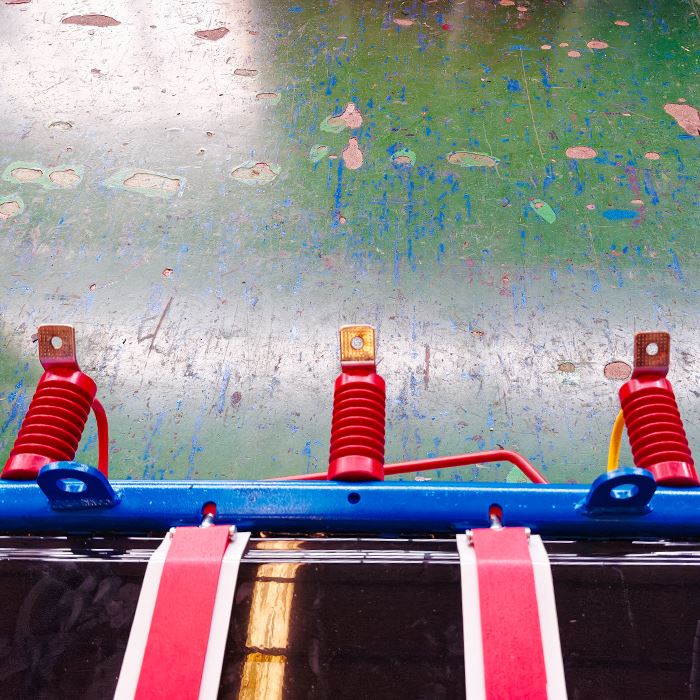

160kVA qhuav resin transformer yog tsim los ua ib qho me me, peb theem, tsis muaj roj, hluav taws kub, thiab ib puag ncig tus phooj ywg tis transformer nrog epoxy resin cam khwb cia rwb thaiv tsev, nrhiav kev ua haujlwm siab thiab kev ntseeg siab hauv ntau yam kev lag luam thiab kev lag luam. Nrog nws cov qauv tsim muaj zog thiab kev cog lus, nws ua kom muaj kev nyab xeeb ntawm kev ua haujlwm yam tsis tas yuav tsum muaj cov khoom cua txias sab nraud. Lub 160kVA qhuav resin transformer muab kev txhim khu kev qha fais fab thaum txo kev cuam tshuam ib puag ncig. Tsim los ntawm kev siv cov khoom zoo ib puag ncig thiab cov cuab yeej precision, nws boasts superior durability, tsis tshua muaj txij nkawm, thiab lub zog efficiency, ua rau nws zoo tagnrho rau lub siab xav tau hluav taws xob xav tau kev pab. Nws tuaj yeem ua haujlwm ruaj ntseg rau lub sijhawm ntev hauv tsev, hauv qab daus, lub Hoobkas me, lub tsev, thiab chav tsev hauv computer, thiab yog siv dav hauv kev lag luam, kev tsim kho, hauv nroog, thiab txawv teb chaws daim phiaj hluav taws xob me me.

Peb 160kVA qhuav resin transformers muaj ntau yam kev siv: lawv tuaj yeem siv los ua cov kauj ruam hauv kev hloov pauv kom tau raws li qhov xav tau ntawm ntau yam kev hloov pauv hloov pauv, hauv cov tshuab me me rau nruab nrab muaj peev xwm siv, lossis raws li peb theem transformers hauv cov tshuab fais fab. Ua tsaug rau lawv cov kev ua tau zoo, kev tsim qauv, thiab kev tsim qauv tsim, lub sijhawm xa khoom luv luv. Peb tsim nruj raws li ntau yam thoob ntiaj teb thiab cov qauv hauv cheeb tsam: IEC, GB, JIS, ANSI, IEEE, thiab UL, thaum tseem ua tau raws li kev ntsuas hluav taws xob (Qib 1 / Qib 2) thiab SCB series yuav tsum. Tag nrho cov khoom tau dhau qhov kev sim nruj thiab ntawv pov thawj raws li cov qauv tsim nyog.

Technical Specifications

Tus lej	Kev kawm qib
Qauv nab npawb	Qhuav hom converter rau ziab roj
Muaj peev xwm tas li	160kVA (Adjustable thov system)
Imported hluav taws xob (Gaogu)	6.6kV, 10kV, 11kV, 20kV, 22kV, 22.9kV, 35kV (Adjustable thov system)
Export hluav taws xob (tsis tshua muaj siab)	0.38kV, 0.4kV, (Adjustable thov system)
Voltage tswj ntau yam	± 5%, ± 2 × 2.5%, (Adjustable thov system)
Tus naj npawb ntawm cov theem	Peb theem (Adjustable demand system)
Ntau zaus	50Hz / 60Hz
Txuas Group	Dyn11,Yyn0,Yd11,Dyn5,YNd11(Adjustable demand system)
Cov khoom siv winding	Aluminium / tooj liab
Tsis load poob	(Adjustable thov system)
Load poob	(Adjustable thov system)
Tsis muaj load tam sim no	(Adjustable thov system)
Kub nce siab txwv	100K, 125K (Raws li F / H chav kawm rwb thaiv tsev) (kho tau qhov system)
luv Circuit Court impedance	(Adjustable thov system)
Txoj kev txias	AN (natural cooling) los yog AF (cuam tshuam cua txias)
Rwb thaiv tsev chav kawm	Chav Kawm F (Class H xaiv tau)
Kev tso tawm ib nrab	Tsawg dua lossis sib npaug li 5pC
Cov qauv kev coj ua	IEC, GB, JIS, ANSI, IEEE, UL

Qhuav Hom Transformer FAQ

1. Koj tuaj yeem hloov kho qhuav -hom transformers?
Yog lawm. Kev cai voltage, muaj peev xwm, tapping ntau yam, enclosure hom, xim xim, thiab cov neeg siv khoom logo ntawm nameplate.

2. Koj daim ntawv pov thawj dab tsi ua rau koj qhuav -hom transformers muaj?
ISO9001, CE, CB. UL, CSA, EAC, SASO muaj raws li qhov kev thov.

3. Koj puas muab kev taw qhia kev teeb tsa rau qhuav -hom transformers?
Yog lawm. Kev qhia chaw taws teeb (video, phau ntawv) lossis ntawm - saib xyuas qhov chaw los ntawm peb cov engineers.
