Product Overview

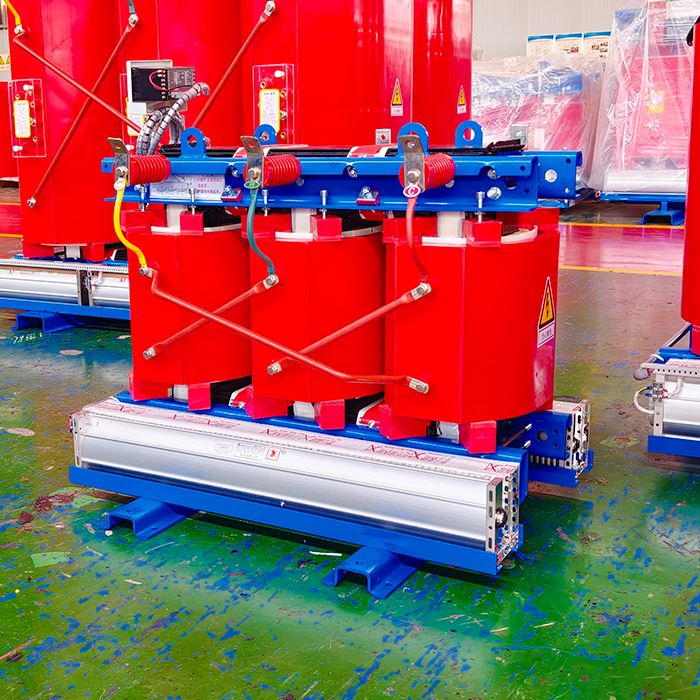

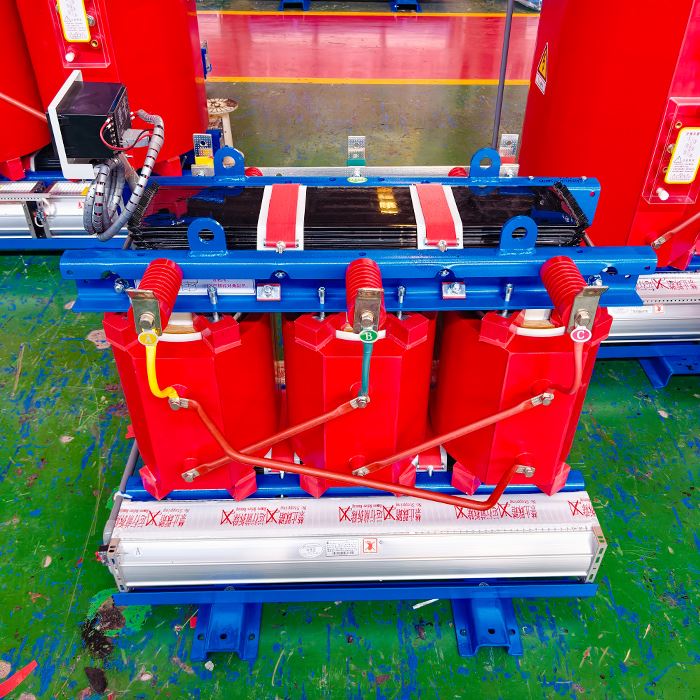

250 kVA qhuav hom kauj ruam down transformer yog ib tug me me, peb theem, tsis muaj roj, hluav taws kub resistant, thiab ib puag ncig tus phooj ywg tis transformer nrog epoxy resin cam khwb cia insulation.dry hom hwj chim transformer rau 6.6kV / 10kV / 0.4kV fais fab faib tshuab, feem ntau yog siv rau voltage hloov dua siab tshiab, fais fab faib, thiab ruaj khov fais fab mov. Cov khoom yog compact, tsis tshua muaj poob, tsis tshua muaj suab nrov, yuav tsum tsis muaj kev tu, thiab muaj zog luv luv Circuit Court muaj peev xwm. Nws tuaj yeem ua haujlwm yam xyuam xim rau lub sijhawm ntev hauv tsev, hauv qab daus, lub Hoobkas me, lub tsev, thiab chav tsev hauv computer, thiab siv dav hauv kev lag luam, kev tsim kho, hauv nroog, thiab daim phiaj hluav taws xob me me.
250 kVA qhuav hom kauj ruam down transformers muaj ntau yam kev siv: lawv yuav siv tau raws li kauj ruam transformers kom tau raws li ntau yam voltage hloov dua siab tshiab xav tau kev pab, nyob rau hauv me me transformer systems rau tsawg muaj peev xwm daim ntaub ntawv, los yog raws li peb theem transformers nyob rau hauv industrial fais fab systems. Ua tsaug rau lawv cov kev ua tau zoo thiab cov qauv tsim qauv, thiab ua tsaug rau kev tsim cov txheej txheem kev paub tab, Transformer tswj hwm qib khoom tsim nyog, ua rau kev xa khoom sai. Peb tsim nruj raws li ntau yam thoob ntiaj teb thiab cov qauv hauv cheeb tsam: IEC, GB, JIS, ANSI, IEEE, UL, thaum ua tau raws li cov kev ntsuas hluav taws xob (Qib 1 / Qib 2) thiab SCB series yuav tsum. Tag nrho cov khoom tau dhau qhov kev sim nruj thiab ntawv pov thawj ntawm cov qauv sib xws.
Technical Specifications
|
Tus lej |
Kev kawm qib |
|
Qauv nab npawb |
Qhuav hom converter rau ziab roj |
|
Muaj peev xwm tas li |
250kVA (Adjustable thov system) |
|
Imported hluav taws xob (Gaogu) |
6.6kV, 10kV, 11kV, 20kV, 22kV, 22.9kV, 35kV (Adjustable thov system) |
|
Export hluav taws xob (tsis tshua muaj siab) |
0.38kV, 0.4kV, (Adjustable thov system) |
|
Voltage tswj ntau yam |
± 5%, ± 2 × 2.5%, (Adjustable thov system) |
|
Tus naj npawb ntawm cov theem |
Peb theem (Adjustable demand system) |
|
Ntau zaus |
50Hz / 60Hz |
|
Txuas Group |
Dyn11,Yyn0,Yd11,Dyn5,YNd11(Adjustable demand system) |
|
Cov khoom siv winding |
Aluminium / tooj liab |
|
Tsis load poob |
(Adjustable thov system) |
|
Load poob |
(Adjustable thov system) |
|
Tsis muaj load tam sim no |
(Adjustable thov system) |
|
Kub nce siab txwv |
100K, 125K (Raws li F / H chav kawm rwb thaiv tsev) (Adjustable demand system) |
|
luv Circuit Court impedance |
(Adjustable thov system) |
|
Txoj kev txias |
AN (natural cooling) los yog AF (tsim cua txias) |
|
Rwb thaiv tsev chav kawm |
Chav Kawm F (Class H xaiv tau) |
|
Kev tso tawm ib nrab |
Tsawg dua lossis sib npaug li 5pC |
|
Cov qauv kev coj ua |
IEC, GB, JIS, ANSI, IEEE, UL |
Khoom Zoo
● Muab cov qauv kaw tag nrho, tsis muaj paug - tsis muaj kev saib xyuas thiab ruaj khov rau ntau xyoo ntawm kev ua haujlwm.
● Muab cov rwb thaiv tsev zoo, ua kom txias txias, muaj peev xwm ntau dhau, thiab txhim khu kev qha txawm nyob hauv qhov chaw hnyav sab nraum zoov.
● Ua tiav qhov poob qis thiab kev ua haujlwm siab, uas txo qis kev siv hluav taws xob thiab cov nqi khiav.
● Tsim nrog cov qauv compact – txuag chaw, yooj yim installation, thiab yoog tau yooj yim rau ntau qhov chaw.
● Muab cov nqi-zoo thiab lub neej ua haujlwm ntev, txo kev ua haujlwm tag nrho thiab kev siv nyiaj txij nkawm.
● Kev tiv thaiv luv luv thiab cuam tshuam kev ntxhov siab - muaj peev xwm ua haujlwm hnyav-load tas mus li.
Qhuav Hom Transformer FAQ
1. Lub tshuab ziab khaub ncaws - hom transformer ntev npaum li cas?
Raws li kev ua haujlwm sab hauv tsev, 25-30 xyoo lossis ntau dua.
2. Koj muaj peev xwm thiab voltage dab tsi rau qhuav -hom transformers?
Peev Xwm: 30kVA - 10,000kVA +. Thawj qhov hluav taws xob: mus txog 35kV. Secondary: 0.4kV, 0.69kV, lossis kev cai.
3. Puas tuaj yeem qhuav -hom transformers siv sab nraum zoov?
Yog lawm, tab sis yuav tsum tau muab tso rau hauv IP54 los yog siab dua weatherproof enclosure los tiv thaiv los nag, plua plav, thiab tshav ntuj ncaj qha.
