Product Overview

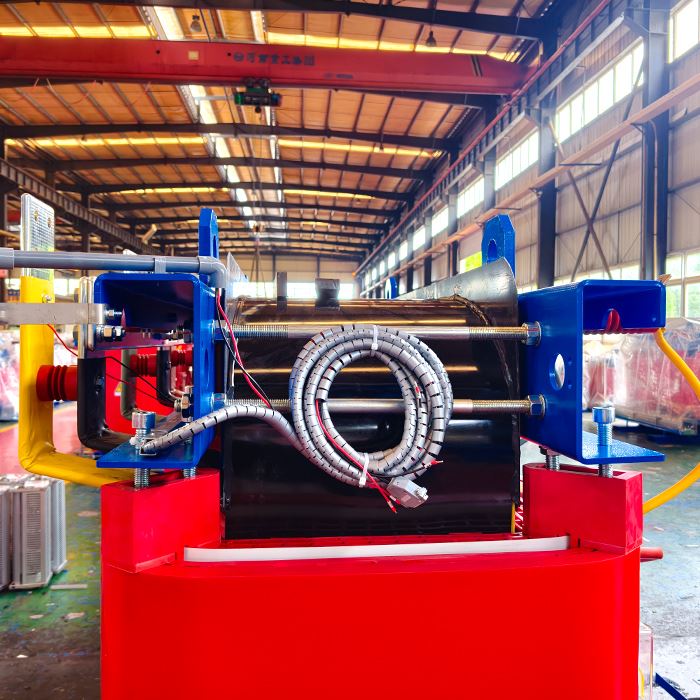

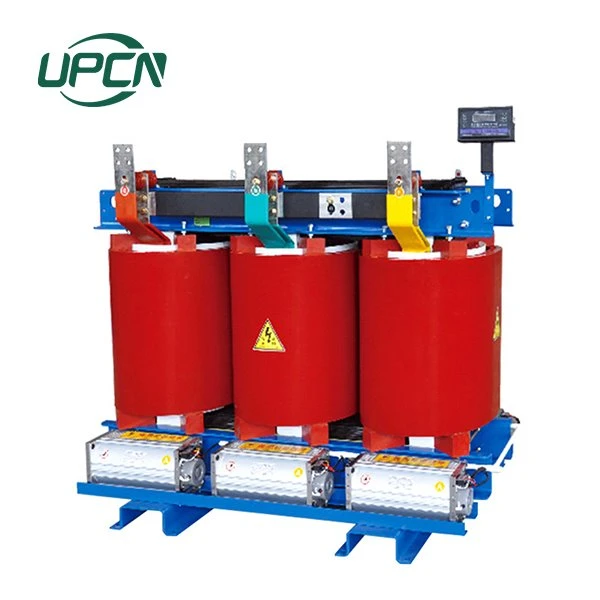

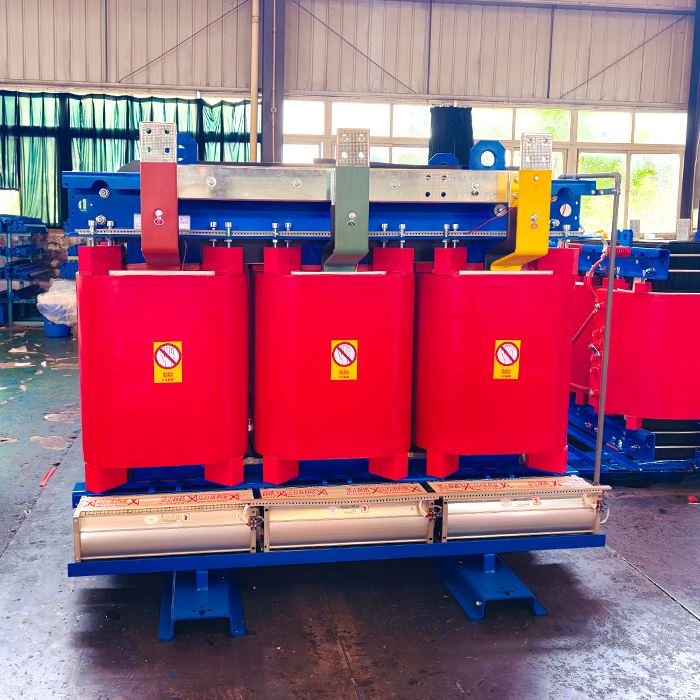

Lub 2500 kVA qhuav hom transformer yog peb theem, tsis muaj roj, hluav taws kub, thiab ib puag ncig tus phooj ywg tis transformer siv epoxy resin casting rwb thaiv tsev. Nws lub zog txhua yam muaj zog los ntawm kev muab tub lim siv zog, uas txo qis hauv kev ntxhov siab thiab kho shrinkage, ua rau cov khoom siv tawv, ruaj khov. Preformed reinforcing cov ntaub ntawv yog embedded nyob rau hauv lub epoxy encapsulation khaubncaws sab nraud povtseg ntawm lub siab thiab tsis tshua muaj voltage coils, tsim ib tug ntom qauv zoo li cov pob zeb reinforced. Qhov no ua rau lub tshuab hluav taws xob hloov pauv lub zog dhau ntawm cov ntshiab epoxy resin, tso cai rau nws los tiv thaiv tam sim luv luv-circuit electrodynamic rog yam tsis muaj kev puas tsuaj.
Qhov no 2500kVA kauj ruam down transformer pab ntau yam voltage hloov dua siab tshiab xav tau. Nws ua hauj lwm raws li ib tug me me transformer rau tsawg muaj peev xwm daim ntaub ntawv los yog raws li ib tug peb theem fais fab transformer nyob rau hauv muaj hwj chim systems. Ua tsaug rau kev txhim kho kev ua tau zoo thiab cov qauv tsim, peb khaws cov khoom tsim nyog rau kev xa khoom sai. Peb tsim nruj me ntsis rau cov qauv thoob ntiaj teb thiab hauv cheeb tsam: IEC, GB, JIS, ANSI, IEEE, UL, thiab ua tau raws li kev ntsuas hluav taws xob hluav taws xob (Qib 1 / Qib 2) thiab SCB series yuav tsum tau ua. Txhua chav ua haujlwm dhau qhov kev xeem nruj thiab ntawv pov thawj.
Khoom zoo
● Ib-thooj resin casting muab lub zog dielectric siab, muaj zog txhua yam durability, thiab zoo heev luv luv-circuit kam rau ua.
● Cov nplaim hluav taws kub hnyiab thiab tua nws tus kheej - nres qhov phom sij thib ob.
● Ua tau ntseeg tau txawm nyob rau hauv ib puag ncig hnyav.
● Kev tu me me, kev siv nyiaj tsawg.
● Kev poob qis, kev ua haujlwm siab, kev txuag hluav taws xob ntau.
Cov yam ntxwv ntawm cov khoom
|
Yam ntxwv |
Product Technology Advantages |
|
Tsawg zog hauv zos emission |
Siv cov txheej txheem epoxy resin nqus casting, ib feem ntawm qhov paug tawm tsawg dua los yog sib npaug li 5pC, uas yog qis dua tus qauv yuav tsum tau ua thiab txuas ntxiv lub neej rwb thaiv tsev. |
|
Anti luv luv Circuit Court muaj peev xwm zog |
Lub kauj yog cam khwb cia raws li ib tug nruj nreem, uas muaj peev xwm tiv taus lub zog loj electrodynamic tsim thaum lub sij hawm luv luv Circuit Court, tsis muaj kev pheej hmoo ntawm kev txav los yog tawg. |
|
Tide resistant |
Nws tuaj yeem khaws cia thiab ua haujlwm hauv qhov chaw muaj av noo yam tsis muaj kev ziab ua ntej; thaum siv nrog lub plhaub tiv thaiv, nws tsim nyog rau cov plua plav lossis corrosive ib puag ncig. |
Technical Specifications
|
Tus lej |
qib technical |
|
Qauv nab npawb |
Qhuav hom converter rau ziab roj |
|
Muaj peev xwm tas li |
2500kVA (Adjustable thov system) |
|
Imported hluav taws xob (Gaogu) |
6.6kV, 10kV, 11kV, 20kV, 22kV, 22.9kV, 35kV (Adjustable thov system) |
|
Export hluav taws xob (tsis tshua muaj siab) |
0.38kV, 0.4kV, (Adjustable thov system) |
|
Voltage tswj ntau yam |
± 5%, ± 2 × 2.5%, (Adjustable thov system) |
|
Tus naj npawb ntawm cov theem |
Peb theem (Adjustable demand system) |
|
Ntau zaus |
50Hz / 60Hz |
|
Txuas Group |
Dyn11,Yyn0,Yd11,Dyn5,YNd11(Adjustable demand system) |
|
Cov khoom siv winding |
Aluminium / tooj liab |
|
Tsis load poob |
(Adjustable thov system) |
|
Load poob |
(Adjustable thov system) |
|
Tsis muaj load tam sim no |
(Adjustable thov system) |
|
Kub nce txwv |
100K, 125K (Raws li F / H chav kawm rwb thaiv tsev) (Adjustable demand system) |
|
luv Circuit Court impedance |
(Adjustable thov system) |
|
Txoj kev txias |
AN (natural cooling) los yog AF (tsim cua txias) |
|
Rwb thaiv tsev chav kawm |
Chav Kawm F (Class H xaiv tau) |
|
Kev tso tawm ib nrab |
Tsawg dua lossis sib npaug li 5pC |
|
Cov qauv kev coj ua |
IEC, GB, JIS, ANSI, IEEE, UL |
Qhuav-Hom Transformer FAQ
1. Dab tsi yog qhov qhuav hom transformer?
Ib hom qhuav transformer siv epoxy resin los yog cua ua rwb thaiv tsev es tsis txhob roj. Nws yog hluav taws kub nyab xeeb, txij nkawm tsis pub dawb, thiab tsim rau kev teeb tsa sab hauv tsev.
2. Hom qhuav vs roj immersed - uas zoo dua?
Hom qhuav: muaj kev nyab xeeb hauv tsev, tsis muaj hluav taws kub, tsis muaj kev saib xyuas, nqi ntau dua.
Roj rau hauv dej: zoo dua rau sab nraum zoov, tus nqi qis dua, xav tau kev sim roj. Xaiv raws li koj qhov chaw teeb tsa.
3. Kuv tuaj yeem nruab lub tshuab hluav taws xob qhuav qhov twg?
Sab hauv - tsev, tsev kho mob, cov ntaub ntawv chaw, factories, khw malls. Rau kev siv sab nraum zoov, ntxiv cov ntaub thaiv huab cua.
