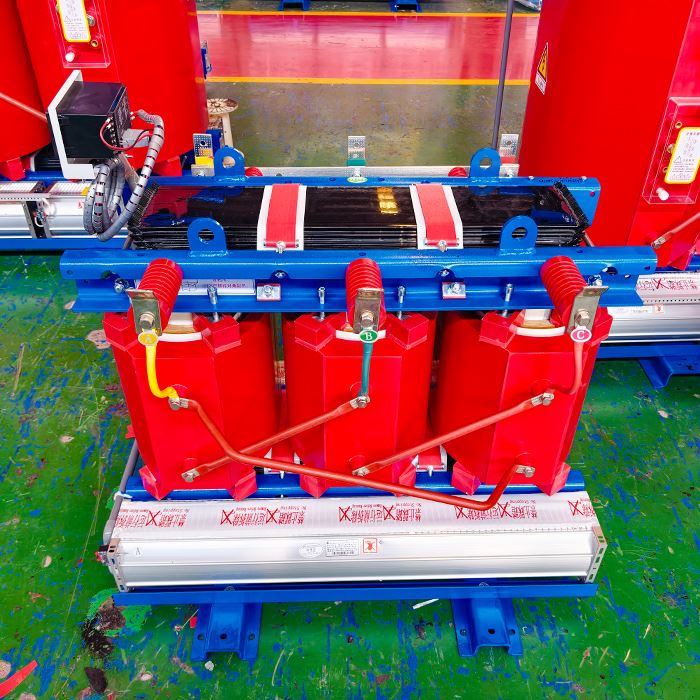

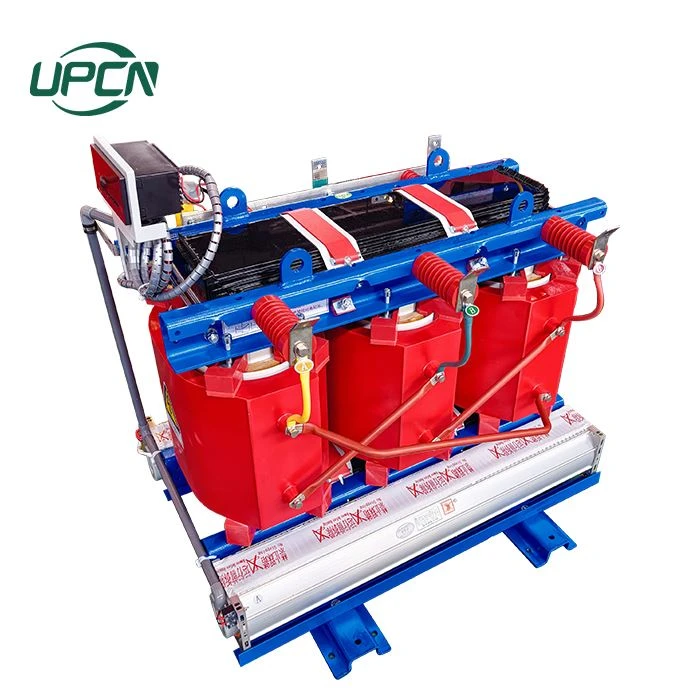

Product Overview
Lub 80kVA qhuav hom transformer siv epoxy resin casting rwb thaiv tsev thev naus laus zis thiab nta peb theem, roj tsis muaj hluav taws xob, hluav taws kub resistant, thiab tus phooj ywg tus qauv tsim, muab tso rau hauv nruab nrab muaj peev xwm me me transformer. Lub 3-theem transformer yog tsim rau lub tshuab hluav taws xob faib hluav taws xob thiab feem ntau siv hauv kev hloov pauv hluav taws xob, hluav taws xob faib hluav taws xob, thiab cov khoom siv hluav taws xob ruaj khov. Nws cov qauv compact nta qis poob, tsis tshua muaj suab nrov, txij nkawm dawb ua haujlwm, thiab muaj zog luv luv Circuit Court tsis kam, ua rau lub sijhawm ntev kev lag luam nyob hauv tsev, hauv qab daus, lub Hoobkas me, lub tsev lag luam, cov ntaub ntawv chaw, thiab chav tsev hauv computer. Nws yog qhov kev xaiv txhim khu kev qha rau kev lag luam, kev tsim kho, hauv nroog, lub zog tshiab, thiab cov phiaj xwm hluav taws xob me me.
80kVA qhuav hom transformers npog ntau daim ntawv thov kev xav tau: lawv tuaj yeem ua cov haujlwm qis qis kom ua tau raws li ntau yam kev hloov pauv hloov hluav taws xob, thiab tseem tuaj yeem siv rau hauv cov khoom siv hluav taws xob me me thiab nruab nrab, lossis ua peb theem faib transformers hauv cov tshuab fais fab. Nrog rau cov qauv tsim qauv thiab cov txheej txheem tsim khoom ruaj khov, transformer rau lub zog tswj cov khoom tsim nyog xyoo puag ncig los txhawb kev xa khoom sai. Cov khoom lag luam nruj me ntsis ua raws li ntau yam kev cai thoob ntiaj teb thiab hauv cheeb tsam xws li IEC, GB, JIS, ANSI, IEEE, thiab UL, thaum tseem ua tau raws li kev ntsuas hluav taws xob (Qib 1 / Qib 2) thiab SCB series yuav tsum. Tag nrho cov khoom tau dhau qhov kev xeem nruj thiab ntawv pov thawj raws li cov qauv tsim nyog.
Khoom Zoo
● Rwb thaiv tsev & lub zog- Integrated resin casting kom ntseeg tau tias muaj zog dielectric siab, txhua yam robustness, thiab luv-circuit kuj.
● Kev nyab xeeb hluav taws- Self-extinguishing thiab nplaim retardant; tsis muaj hluav taws kub txaus ntshai.
● Npaj ib puag ncig hnyav- Kev ua tau zoo ib puag ncig, txhim khu kev qha hauv cov xwm txheej nyuaj.
● Kev tu qis- Kev tu ncua tsawg kawg nkaus, cov nqi khiav qis.
● Kev siv hluav taws xob zoo- Kev poob qis, kev ua haujlwm siab, kev txuag hluav taws xob loj.
Technical Specifications
| Tus lej | Kev kawm qib |
| Qauv nab npawb | Qhuav hom converter rau ziab roj |
| Muaj peev xwm tas li | 80kVA (Adjustable thov system) |
| Imported hluav taws xob (Gaogu) | 6.6kV, 10kV, 11kV, 20kV, 22kV, 22.9kV, 35kV (Adjustable thov system) |
| Export hluav taws xob (tsis tshua muaj siab) | 0.38kV, 0.4kV, (Adjustable thov system) |
| Voltage tswj ntau yam | ± 5%, ± 2 × 2.5%, (Adjustable thov system) |
| Tus naj npawb ntawm cov theem | Peb theem (Adjustable demand system) |
| Ntau zaus | 50Hz / 60Hz |
| Txuas Group | Dyn11,Yyn0,Yd11,Dyn5,YNd11(Adjustable demand system) |
| Cov khoom siv winding | Aluminium / tooj liab |
| Tsis load poob | (Adjustable thov system) |
| Load poob | (Adjustable thov system) |
| Tsis muaj load tam sim no | (Adjustable thov system) |
| Kub nce siab txwv | 100K, 125K (Raws li F / H chav kawm rwb thaiv tsev) (kho tau qhov system) |
| luv Circuit Court impedance | (Adjustable thov system) |
| Txoj kev txias | AN (natural cooling) los yog AF (cuam tshuam cua txias) |
| Rwb thaiv tsev chav kawm | Chav Kawm F (Class H xaiv tau) |
| Kev tso tawm ib nrab | Tsawg dua lossis sib npaug li 5pC |
| Cov qauv kev coj ua | IEC, GB, JIS, ANSI, IEEE, UL |
Kev siv scenario
Cov ntaub ntawv khoom thiab daim ntawv pov thawj
● Material Safety Data Sheet (MSDS)
● Daim ntawv qhia txog kev kuaj lub Hoobkas
● Daim ntawv pov thawj ntawm kev ua raws
● Daim ntawv pov thawj khoom
● Kev teeb tsa thiab kev ua haujlwm phau ntawv
Qhuav-Hom Transformer FAQ
1. Dab tsi yog qhov qhuav hom transformer?
Ib hom qhuav transformer siv epoxy resin los yog cua ua rwb thaiv tsev es tsis txhob roj. Nws yog hluav taws kub nyab xeeb, txij nkawm tsis pub dawb, thiab tsim rau kev teeb tsa sab hauv tsev.
2. Hom qhuav vs roj immersed - uas zoo dua?
Hom qhuav: muaj kev nyab xeeb hauv tsev, tsis muaj hluav taws kub, tsis muaj kev saib xyuas, nqi ntau dua.
Roj immersed: zoo dua rau sab nraum zoov, tus nqi qis dua, xav tau kev sim roj. Xaiv raws li koj qhov chaw teeb tsa.
3. Kuv tuaj yeem nruab lub tshuab hluav taws xob qhuav qhov twg?
Sab hauv - tsev, tsev kho mob, cov chaw zov me nyuam, chaw ua haujlwm, khw muag khoom. Rau kev siv sab nraum zoov, ntxiv cov ntaub thaiv huab cua.
