Product Overview

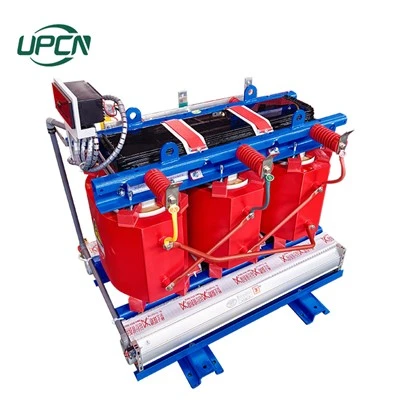

500 kVA qhuav hom transformer yog epoxy resin cam khwb cia rwb thaiv tsev, tsis muaj roj, fireproof, thiab environmentally friendly tis transformer . 500 kva transformer rau 6.6kV / 10kV / 20kV thiab 22kV fais fab faib tshuab, thiab yog tsuas yog siv rau kauj ruam transformers, fais fab faib, thiab ruaj khov fais fab mov.
500 kVA qhuav hom transformer yog nruab nrog ib qho kev ua kom txias txias (crossflow txias kiv cua) thiab cov ntse tswj qhov kub thiab txias kom ntseeg tau tias kev ua haujlwm ruaj khov ntawm lub transformer.
500 kVA qhuav hom transformer muaj ntau yam kev siv: raws li ib tug kauj ruam down transformer, nws ua tau raws li ntau yam voltage hloov dua siab tshiab xav tau thiab kuj yuav siv tau nyob rau hauv me me transformer systems rau qis dua muaj peev xwm daim ntaub ntawv. Cov khoom no tau raug pov thawj los ntawm cov neeg siv kom ntseeg tau hauv kev ua haujlwm thiab tau mus txog qib siab thoob ntiaj teb.
Khoom zoo
● Lub tshuab hloov pauv muaj qhov ntim tag nrho, xau- qauv tsim pov thawj uas yuav tsum tsis muaj kev saib xyuas thiab ua kom ruaj khov, kev ntseeg tau ntev.
● Roj-immersed kev tsim kho muab cov rwb thaiv tsev zoo tshaj plaws thiab cov cua sov dissipation, muaj zog tshaj qhov muaj peev xwm, thiab ruggedness rau sab nraum zoov.
● Kev poob qis thiab kev ua haujlwm siab txo qis kev siv hluav taws xob thiab cov nqi khiav lag luam.
● Cov qauv compact, qhov chaw txuag ua rau installation yooj yim thiab qhov chaw-adaptable.
● Kev siv nyiaj ntau thiab kev ua haujlwm ntev ua rau txo qis kev ua haujlwm thiab kev saib xyuas tag nrho.
● Withstands luv circuits thiab mechanical cuam tshuam, ua tau raws li qhov xav tau ntawm kev ua haujlwm ntev-ntev load.
Technical Specifications
|
Tus lej |
Kev kawm qib |
|
Qauv nab npawb |
Qhuav hom converter rau ziab roj |
|
Muaj peev xwm tas li |
500kVA (Adjustable thov system) |
|
Imported hluav taws xob (Gaogu) |
6.6kV, 10kV, 11kV, 20kV, 22kV, 22.9kV, 35kV (Adjustable thov system) |
|
Export hluav taws xob (tsis tshua muaj siab) |
0.38kV, 0.4kV, (Adjustable thov system) |
|
Voltage tswj ntau yam |
± 5%, ± 2 × 2.5%, (Adjustable thov system) |
|
Tus naj npawb ntawm cov theem |
Peb theem (Adjustable demand system) |
|
Ntau zaus |
50Hz / 60Hz |
|
Txuas Group |
Dyn11,Yyn0,Yd11,Dyn5,YNd11(Adjustable demand system) |
|
Cov khoom siv winding |
Aluminium / tooj liab |
|
Tsis load poob |
(Adjustable thov system) |
|
Load poob |
(Adjustable thov system) |
|
Tsis muaj load tam sim no |
(Adjustable thov system) |
|
Kub nce txwv |
100K, 125K (Raws li F / H chav kawm rwb thaiv tsev) (Adjustable demand system) |
|
luv Circuit Court impedance |
(Adjustable thov system) |
|
Txoj kev txias |
AN (natural cooling) los yog AF (tsim cua txias) |
|
Rwb thaiv tsev chav kawm |
Chav Kawm F (Class H xaiv tau) |
|
Kev tso tawm ib nrab |
Tsawg dua lossis sib npaug li 5pC |
|
Cov qauv kev coj ua |
IEC, GB, JIS, ANSI, IEEE, UL |
Kev siv scenario
Qhuav Hom Transformer FAQ
1. Dab tsi yog qhov qhuav -hom transformer?
Ib tug qhuav- hom transformer siv cua los yog epoxy resin rau rwb thaiv tsev es tsis txhob roj. Nws yog hluav taws kub- nyab xeeb, txij nkawm- dawb, thiab tsim rau kev teeb tsa sab hauv tsev.
2. Kuv tuaj yeem nruab lub tshuab hluav taws xob qhuav -qhov twg?
Cov ntawv thov sab hauv: siab- cov tsev nce siab, tsev kho mob, cov chaw khaws ntaub ntawv, cov chaw tsim khoom, khw khw, qhov av, tshav dav hlau. Rau kev siv sab nraum zoov, ntxiv cov ntaub thaiv huab cua.
3. Puas yog qhuav-hom transformers xav tau kev saib xyuas tsis tu ncua?
Kev saib xyuas tsawg heev - tsuas yog qee zaus cov plua plav tu thiab kev tshuaj xyuas qhov muag. Tsis muaj kev sim roj, tsis muaj kev hloov lim dej.
Hais txog Union Power
Peb tau xa tawm peb cov khoom mus rau thoob ntiaj teb kev lag luam txij li xyoo 2011. Raws li koj tus khub ntseeg siab, peb xa cov kev hloov pauv hloov pauv, OEM tej yaam num, thiab ua tiav cov pob hluav taws xob. Peb cov khoom lag luam suav nrog cov kauj ruam-down, peb-theem, thiab cov tshuab me me kom haum rau ntau yam kev xav tau ntawm qhov project.
